How Does a Evaporator Effect in Car Air Conditioning Systems

In a car's air conditioning system, the evaporator, a key component similar to the condenser but more compact in size, directly generates the cold air in the refrigeration cycle. Consisting of numerous pipes and fins, it is bottom-mounted with a water tray and drain pipe attached.

So, what is the main function of the evaporator?

It is responsible for evaporating the low-temperature refrigerant from the expansion valve in a low-pressure environment, transforming it into a vapor state while absorbing heat from the surrounding medium during this process to achieve a cooling effect.

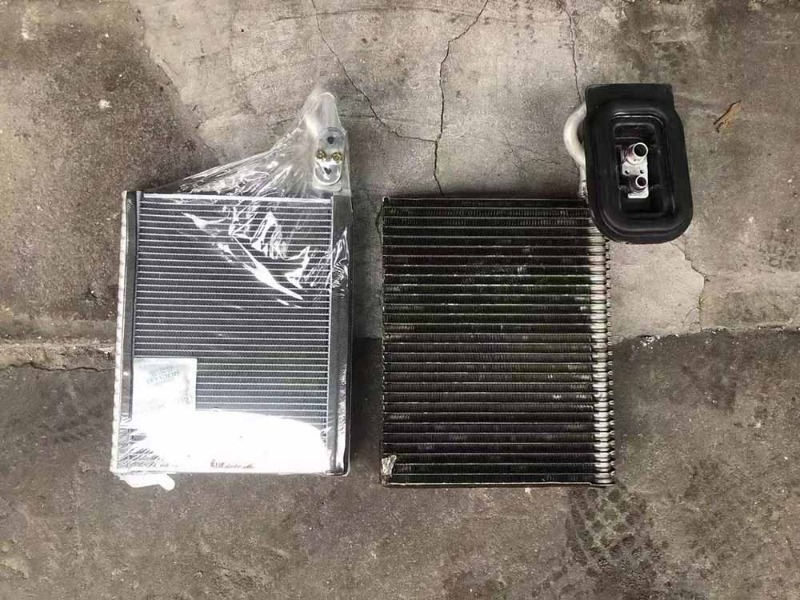

Now, where is the Evaporator For BMW X5 typically located in a car?

It is usually installed inside the air handler behind the dashboard, utilizing a blower to guide outside or inside air through the Evaporator For BMW X5 to achieve cooling and dehumidifying purposes.

How about the durability of the evaporator?

Due to its compact design, the evaporator's tube fins are densely arranged with smaller gaps than conventional air conditioning units. This design may lead to the formation of water bridges after condensation, which can affect heat exchange efficiency. Therefore, preventing condensation and water bridge formation is especially crucial in car air conditioning evaporators. (A water bridge is formed by condensation of water droplets between fins, and excessive water bridges can increase airflow resistance, reducing the efficiency of refrigerant evaporation and cooling capacity.)

As for the types of evaporators, car air conditioning evaporators mainly come in three structural types: tube-and-fin, plate-and-fin, and parallel flow designs.
